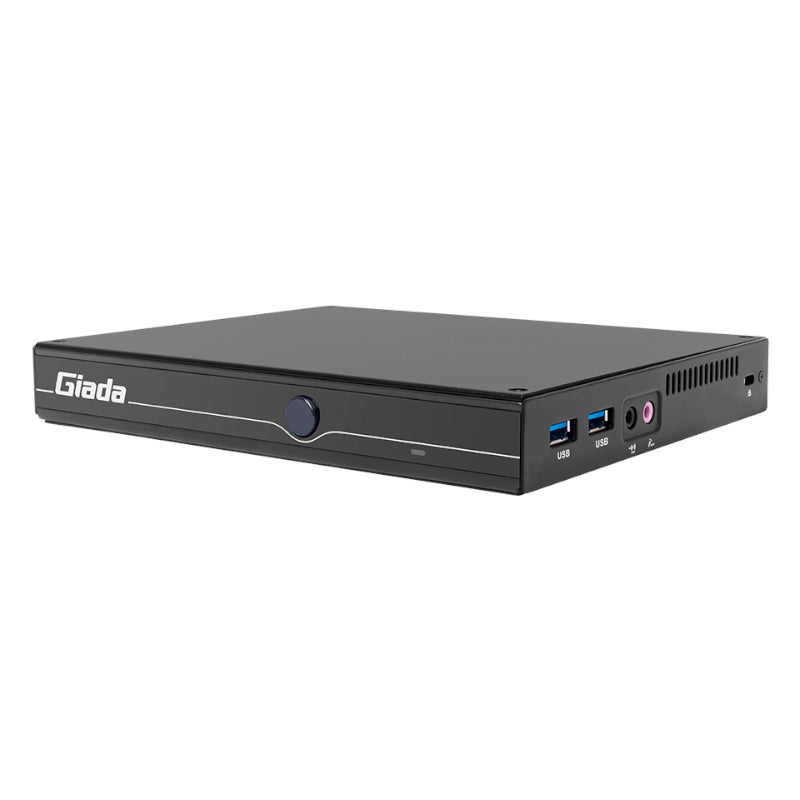

Giada F106D Celeron N5100 4GB eMMC - Unboxed

Overview

The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron® N5100 (TDP 6W, 1.1GHz base frequency). The PC utilises Intel® UHD Graphics and is capable of delivering vibrant dual 1080p video playback. The device has HDMI 2.0a and DisplayPort 1.2 ports, which are capable of supporting resolutions up to 4096 x 2160 at a refresh rate of 60Hz. The device is equipped with a passive thermal cooling system, which features a fanless design. This design not only reduces the failure rate but also ensures that the device operates noise-free and remains dustproof. The Giada F106D Mini PC is designed to be used in mission-critical applications.

FEATURES

• Intel® Celeron® N5100 Processor
• 1 x DP, 1 x HDMI, Supporting 4K Display
• Onboard LPDDR4 4GB
• 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT
• Long life cycle
• Fanless Design

SPECIFICATIONS

Processor

• CPU: Intel® Celeron® N5100 processor (Fanless)
• Turbo Frequency: 2.80 GHz/2.90 GHz
• Chipset: SoC
• Processing Units: 4 Cores/4 Cores

Memory

• Type: Onboard LPDDR4-2666 MHz
• Size: 4GB

Storage Supported

• Socket 1: 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD)
• Socket 2: 1 x Full-size Mini-PCIe for MSATA
• G

Specifications

Model / part number: F106D-FVN510042N0G-GIA.
